China optimum horizontal manual lathe machine torno metal

FOB Reference Price:Get Latest Price
$19,833.00 - $45,166.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
1400mm
Spindle bore:
130
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
24 - 300
Machining Capacity:
Heavy Duty
Width of bed (mm):
755
Max. Turned Length (mm):
3800 mm
Type:
Horizontal
Spindle Motor Power(kW):
22
Year:
2018
Place of Origin:
Shandong, China
Brand Name:
SHANDONG
Model Number:
CW61140B
Voltage:
220/380
Dimension(L*W*H):
8100/2150/1825
Certification:
CE ISO
Weight (KG):
6000 KG
Warranty:
1 Year
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Long Service Life
Applicable Industries:
Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, Turkey, United States, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Malaysia, Australia, Kenya, Argentina, South Korea, UAE, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Pakistan, Russia, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan
Name:
China optimum horizontal manual lathe machine torno metal
Product type:
Conventional Horizontal Large Diameter Universal Lathe Machine
Max. workpiece length:
4000mm
Guideway width:
755mm
Max.swing over carriage:
1000mm
Hole through spindle:
130mm
Quenching hardness:
≤HRC55
Max. length of turning:
3800mm
No of Longitudinal and cross:
56
Precision:
Precision Double chucks lathe
CNC or Not:
Normal
Automatic Grade:
Manual
Max. Swing Diameter (mm):
1400 mm
Spindle Bore(mm):
130 m'm
Max. Length of Workpiece (mm):
4000 mm
Supply Ability
Supply Ability:
500 Set/Sets per Year China optimum horizontal manual lathe machine torno metal
Packaging & Delivery
Packaging Details
IRON CASE OR REQUEST
China optimum horizontal manual lathe machine torno metal
Port
QINGDAO
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

China optimum horizontal manual lathe machine torno metal

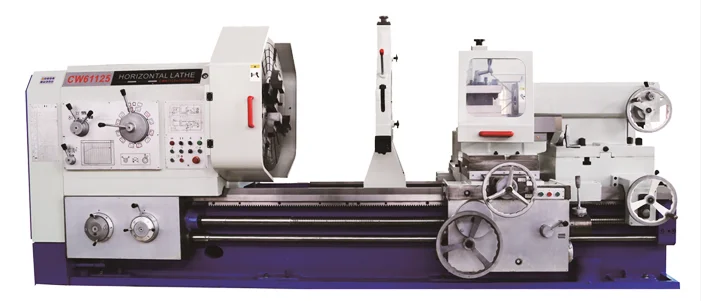

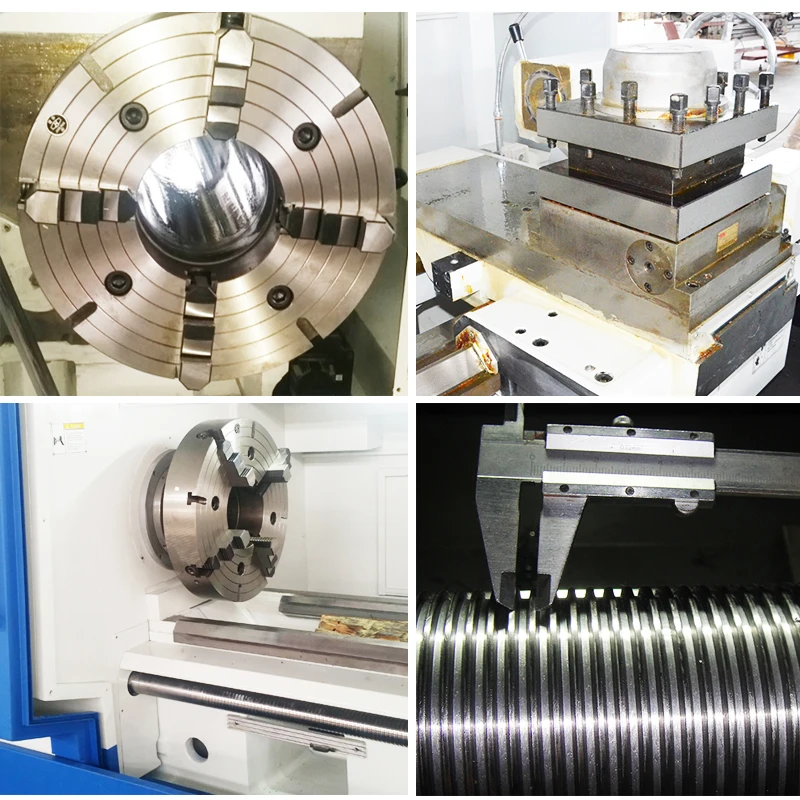

Photos of Mahine
China optimum horizontal manual lathe machine torno metal

Main Techinical specifications

Unit

CW61100B

CW61125B

CW61140B

CW61160B

Swing over bed

mm

1000

1250

1400

1600

Swing over carriage

mm

610

860

1000

1200

Max Length of workpiece

mm

1500 2000 3000 4000 5000 6000 8000

Max turning length

mm

1300 1800 2800 3800 4800 5800 7800

Pan of guideway

mm

755

Quenching hardness



≤HRC55

Spindle nose



A2-15

Spindle bore

mm

130

Taper hole of spindle



1:20/140

Range of spindle speeds

r/min

Forward: 3.15-315; Reverse: 3.5-291

No of spindle speeds



Forward: 21; Reverse: 12

No of Longitudinal and cross



56

Feed per revolution

mm

Longitudinal:0.1-12;Horizontal:0.05 · 6;Upper knife holder:0.025-3

No and range of metric thread

mm

44;1-120mm

Noand range of inch thread



31;28-1/4

No and range of module thread

mm

45;0.5-60mm

No and range of dia thread



38;12-56DP

Distance of spindle and tool plane

mm

48

Tool post swing range

°

90°

Max travel of top slide

mm

300

Section of tool shank

mm

45

Rapid travel speeds

mm/min

4000

Dia. /Travel of tailstock

mm

160(6”)/300(12”)

Taper hole of tailstock quill

mm

Mores 6

Main motor power

kw

22

Length

mm

4600 5100 6100 7100 8100 9100 11100

Width/Height

mm

2150/1700 1825 2150

Max weight of workpiece

kg

6000

CW6163B, CW6100B series of horizontal lathes are suitable for machining large and medium-sized parts of castings, steel and non-ferrous metals, and can turn outer circles, inner holes, end faces, grooving, drilling, boring and nesting, and can turn Various internal and external threads, such as metric system, inch system, modulus and diameter, can be turned on the short cone surface by the upper tool stand alone. The machine has high power, high rigidity, wide speed range, and can perform high-speed and powerful cutting.
The Horizontal Lathes Structural features:
1. Highly rigid overall bed:
The bed adopts an integral cast structural bed, the internal ribs are arranged reasonably, and the rigidity is high. The guide rail adopts an intermediate frequency quenching grinding process. Adopting anti-creeping guide rails and other technical measures at the sliding guide surface, dynamic characteristics such as friction damping coefficient are in the best state, avoiding the occurrence of low-speed crawling.
2.High rigidity and high precision spindle:
The main shaft bearings of the machine tools are selected from domestic famous enterprises. The headstock adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the main shaft. In order to reduce thermal deformation, the bedside box is lubricated by oil bath circulation. The front end of the main shaft adopts a three-support structure of a bidirectional angular contact ball bearing, which improves accuracy and rigidity. The gears in the main shaft box are quenched and ground to ensure accurate transmission and low noise. The carefully assembled spindle has the characteristics of low temperature rise, small thermal deformation, and high precision, so that the accuracy of the spindle can be kept relatively stable during long-term work.
Checkout Equipment

China optimum horizontal manual lathe machine torno metal
SANZHENG Pipe threading lathe advantages:
1. We research and develop Pipe threading lathe for more than 50 years, and our company was restructured in the year 2002 . More than 200 staff ,9 professional engineers ,cover an area of 120,000 square meters.
2.CNC pipe threading lathe is a special model of CNC turning lathe ,mainly used in oil and gas field, machinery manufacturing, geological exploration, thread repair function and so on.
3. Customized service, we can make the pipe threading lathe according to clients’ requirements.
4. We have our own casting workshop, guarantee good quality of the machine.
5. A big production capacity, always have machines in store, though so many orders we can also guarantee delivery time.
6. We have exported to Dubai , Malaysia,the USA ,Russia, Iran etc.
7. We make OEM for Knuth Germany about 8 year ,no quality problem , the orders are added every year.
