professional manufacturer big spindle bore lathe machine for sale

FOB Reference Price:Get Latest Price
$5,000.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
630
Spindle bore:
105
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Machining Capacity:
HEAVY DUTY
Spindle Bore(mm):
105 m'm
Width of bed (mm):
550
Max. Turned Length (mm):
5000 mm
Type:
HORIZONTAL
Year:
2018
Place of Origin:
Shandong, China
Brand Name:
Sanzheng
Model Number:
CW6163B
Voltage:
220/380V
Certification:
CE
Weight (KG):
2500 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High-accuracy
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
canada, United States, ITALY, GERMANY, brazil, SAUDI ARABIA, indonesia, Mexico, RUSSIA, spain, Thailand, malaysia, Australia, argentina, South Korea, UAE, Colombia, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan, Tajikistan
Showroom Location:
canada, france, GERMANY, SAUDI ARABIA, pakistan, RUSSIA, Thailand, argentina, South Korea, UAE, Colombia, Romania, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, uzbekistan, malaysia, Australia
Name:
Milling and turning lathe mahcne
Guideway width:
550mm
Max.swing over bed:
630mm
Max workpiece length:
5000mm
Hole through spindle:
105mm
Bed quenching hardness:
HRC52
Spindle Speed Ranges:
17~1000r/min
Power of main power:
11kw
Nunmber of spindle speed changes:
18 steps
Max swing over carriage:
350mm
CNC or Not:
normal
Automatic Grade:
manual
Max. Swing Diameter (mm):
630 mm
Max. Length of Workpiece (mm):
5000 mm
Supply Ability
Supply Ability:
500 Set/Sets per Month big spindle bore lathe machine
Packaging & Delivery

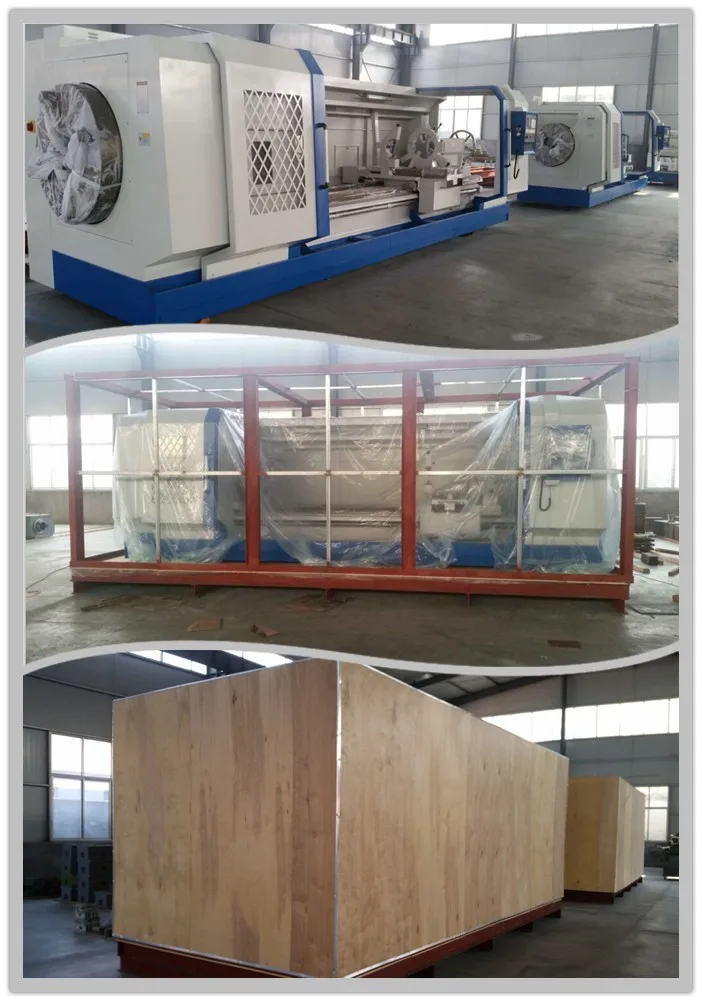

Packaging Details
professional manufacturer big spindle bore lathe machine for sale
Port
Dalian port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

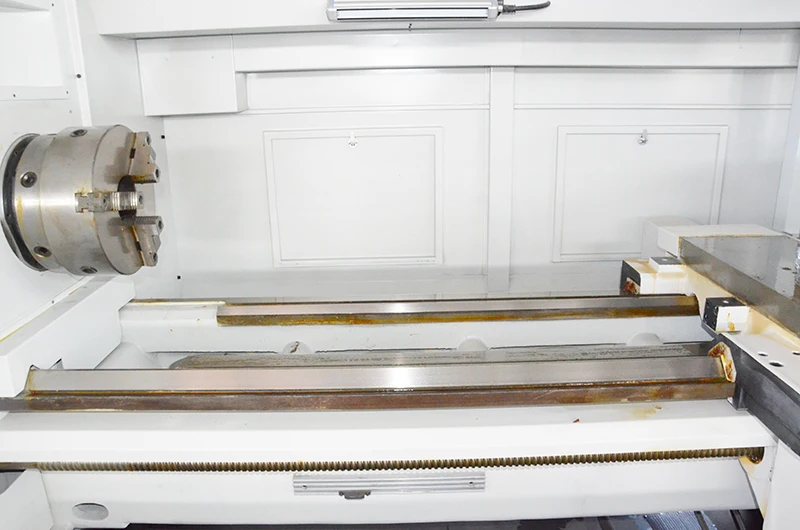

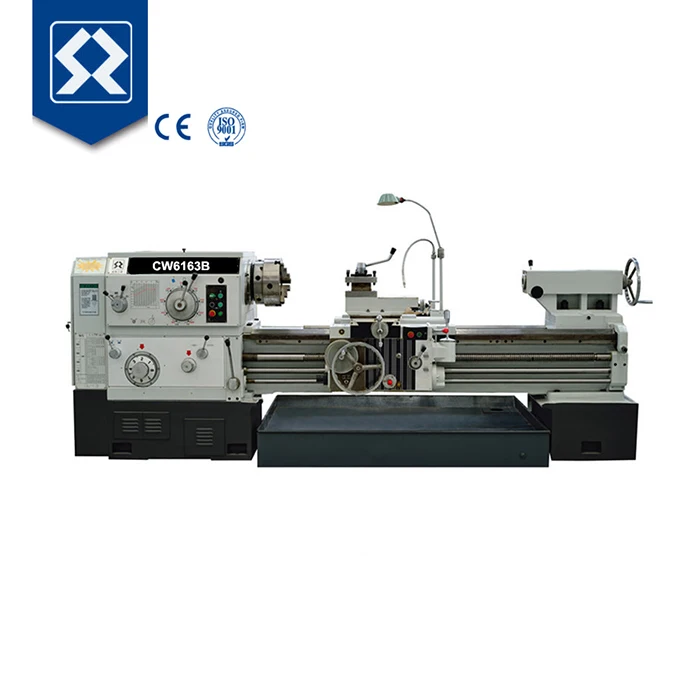

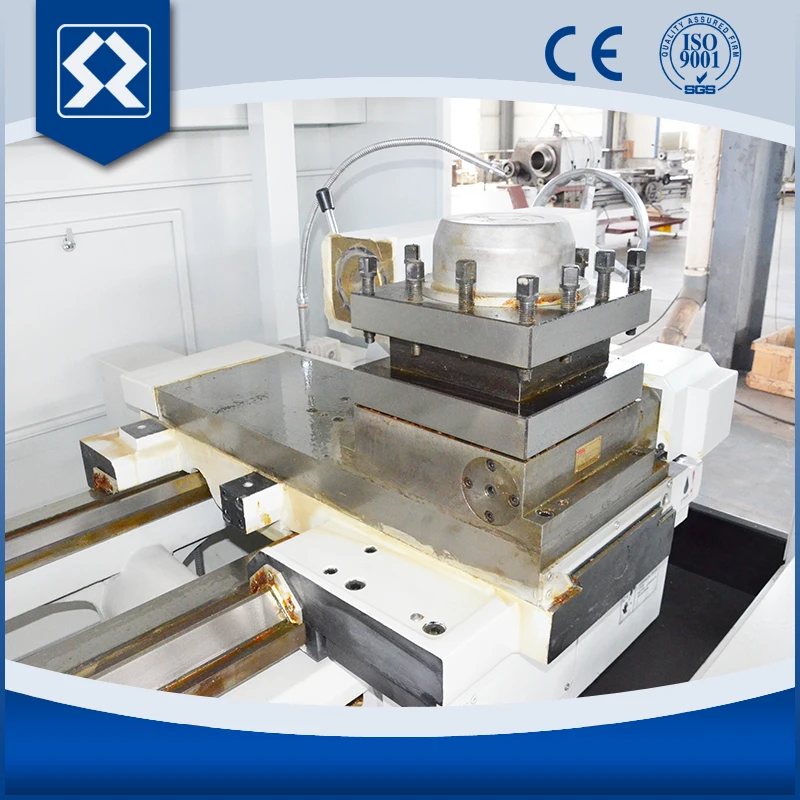

For CW6163B lathe, its bed is of a structure combining oblique stiffener of large width to enhance its rigidity as a whole and operate in concentrative way, the slide carriage is provided with quick feed and the spindle's normal or reverse rotation and braking is controlled hydraulically. The bottom slide surface of the guide rails is of the TSF wear-resistant embedded structure to move freely and smoothly, long service life. The outside-of-stock lubrication system is used to increase its processing accuracy.
Name
Milling and tturning lathe machine
Model
CW6163B
Guideway wodth
550mm
Max swin over bed
630mm
Spindle hole
105mm
main motor power
11kw
Spindle speed ranges
17~1000r/min
Advantage for product
产品优势
Spindle bore is 105 mm and the tail stock is equipped with a graduation disc and graduation lines, more visually usable. The machine is nice in appearance and easy to clean and maintain.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Size Information
Size Chart of This Machine
Model
CW6163B
Guideway width(mm)
550
Max swin over bed(mm)
630
Max workpiece length
5000mm
Max swin over carriage
350mm
Hole through spindle
105mm
Bed quenching hardness
HRC52
Number of spindle speed changes
18 steps
Spindle speed ranges
17~1000r/min
Voltage
220/380V
Power of main motor
11KW
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Shandong SanZheng Machine Tool CO., LTD., a large-scale professional lathe manufacturer, is a modern enterprise which covers the area of design, research, production, and sale and after-sale service. It has more than 20 years experience in manufacturing conventional lathe, pipe threading lathe and CNC lathe.  ShanZheng is an enterprise which owns technology casting, forging, machining, assembly, heat treatment. The CAD and ERP are widely used in the Enterprise informatization management and the development of the new product. Shandong ShanZheng Machine Tool CO., LTD. has passed the ISO9001 quality management system certification, CE certification and obtained the right of import and export. It has been rated as the “top enterprise ", "trustworthiness enterprise", "advanced enterprises for independent innovation" by the China machine tool industry for many years. The products are not just sold in China but also exported to Germany, Australia, Saudi Arabia, Holland, Chile, Singapore and other countries. We are the largest production suppliers of pipe threading lathe in Germany. High-quality product and timely after-sales service help us won the unanimous trust and favorable comment from both the domestic and foreign customers!

Our Advantages

1. Compared with other factories, casting material which produced by our company independently is really better than the others. The product adopts the advanced electric furnace melting resin sand molding casting technology, so the gas permeability is superior and it can effectively avoid the casting internal voids, porosity. We can absolutely ensure the casting quality after the analysis of United States imported equipment precision spectrometer.

2. With the super audio quenching treatment, the hardness of Body guide rail can reach HRC55 degrees and above. It can keep the hardness high accurate, and prolong the wear resistance and service life. The lathe beds of Other manufacturers are all adopted abutting joint because of  cupola restrictions (1 tons of cupola a pack of hot metal) , but our six electric furnace are 3 tons, So our one to twelve meters lathe bed and guide screw are all for one with the better Stiffness and toughness.

3. The reason why using the original mechanical transmission is to make sure that the main motor can also play on the maximum torque when the equipment runs at a low speed . If we just do the frequency conversion, it will get the lathe stuck and damage the work piece.
