Q1319 Manual Turning Lathe Machine for Pipe

FOB Reference Price:Get Latest Price
$9,666.00 - $27,000.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
630mm
Spindle bore:
200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
40 - 3000
Machining Capacity:
Heavy Duty
Width of bed (mm):
490
Max. Turned Length (mm):
2800 mm
Type:
Horizontal
Spindle Motor Power(kW):
11
Year:
2018
Place of Origin:
Shandong, China
Brand Name:
Sanzheng
Model Number:
Q1319
Voltage:
220/380v
Dimension(L*W*H):
3700/1700/1500
Certification:
CE&ISO
Weight (KG):
4430 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
High-accuracy
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Canada, United Kingdom, France, Germany, Saudi Arabia, Russia, Malaysia, Australia, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
United Kingdom, France, Germany, Saudi Arabia, Russia, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
CNC or Not:
Normal
Automatic Grade:
Manual
Max. swing over bed:
630mm
Max. swing over carriage:
350mm
Max. work-piece length:
1000mm-5000mm
Hole through spindle:
200
Power of main motor:
7.5kw
Max. workpiece length:
1500/3000/4000/5000/6000mm
Name:
Q1319 Manual Turning Lathe Machine for Pipe
Max. Swing Diameter:
630
Max. Swing Diameter (mm):
630 mm
Spindle Bore(mm):
200 m'm
Max. Length of Workpiece (mm):
3000 mm
Supply Ability
Supply Ability:
20 Set/Sets per Month Q1319 Manual Turning Lathe Machine for Pipe
Packaging & Delivery
Packaging Details
wooden case
Q1319 Manual Turning Lathe Machine for Pipe
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

Q1319 Manual Turning Lathe Machine for Pipe

Photos of Mahine





Pipe threading lathe
The pipe thread lathe generally has a large through hole on the headstock, and the workpiece is passed through the through hole and clamped by two chucks at both ends of the spindle for the rotary motion. There are two ways to feed the tool: one is similar to a conventional lathe that is driven by a screw to move the slide and the knife holder in front of the bed; the other is a flat comb that is located on the slide in the center of the bed. The external thread cutting head (see automatic opening and closing thread cutting head) cuts into the workpiece and is moved forward. Some machines that process long tubes also have workpiece support. The pipe thread lathe has been partially digitally controlled. Each time the workpiece rotates by 1 revolution, the tool moves uniformly according to the number of feed pulses corresponding to the distance of the selected pitch, which is convenient for machining the taper thread, changing the pitch and correcting the pitch error. This type of machine has a workpiece length of up to 15 meters and a diameter of up to 400 mm. Large processing diameter: bed body: 615mm

SANZHENG Pipe threading lathe Product advantages
1we can can absolutely ensure the casting quality after the United States imported equipment precision spectrometer analysis.
2.With the super audio quenching treatment ,the hardness of Body guide rail can reach above HRC55 degrees, it can keep the hardness high accurate, and prolong the wear resistance and service life.
3.The lathe bed we produced is all research and development by our own engineers. These all can greatly increased the rigidity and are helpful to widen and Thicken the dragging plate,
4The large plate guide guide rail (X) is also go through the super audio quenching treatment, so it increased hardness and then could guarantee the service life of equipment more efficiently.
5 The equipment will firstly tested by the laser interferometer imported from Britain to test repeated positioning accuracy of X, Z direction in order to make sure the accuracy. Then the whole machine will be tested according to the National standard whole machine.
Our enterprise have got the ISO9001-2008 quality system certification and the European Union CE certification.

Main Parameters





ModelQ1313-1BQ1319—1BQ1322Q1327Q1332Q1343
Bed way width490mm750mm
Swing diameter over bed630 mm1000 mm

Swing diameter

over carriage

350mm610mm
Max. pipe diameter126 mm193 mm220260 mm320426 mm
Max. workpiece length1500/3000mm

Spindle bore

hole diameter

130 mm200mm225270 mm330mm440 mm
Spindle speed range18 steps12 steps9 steps
Spindle speed range12~640 r/min24~460 r/min16~380 r/min16~380 r/min4.9~180 r/min

Inch thread range

(teeth number/Inch)

2~284~122~222~24
Kinds40 kinds6 kinds22 kinds17 kinds
Metric thread range1~14mm2~8mm1-30mm1~12mm
kinds24 Kinds4 Kinds30 Kinds16 Kinds
Main motor11kw18.5kw22kw22 kw

Max. length of

taper process

500 mm1000 mm
Quick feeding movement6000mm/min
Precision gradeIT7
Surface roughnessRa1.6

Checkout Equipment
Feature
1. We set up TRB (tapered rolling bearings) on this lathe to increase the rigidity of the spindle.
2. Big spindle bore and double chuck allows clamp and process big diameter pipes;The spindle bore is very large and set up double chucks both front and back and you can choose electric chucks as you like.
3. Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance;Carriage and guide way contact surface pasted with Turcite B to maintain long-term accuracy,The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
4. The slide rail f saddle is treated by wear-resisting layer coated, to avoid the crawling.
5. There are two types of speed change: Manual and step less.
6. Set up self lubrication system, and easy to maintain.
7.Integral machine bed adopts high strength iron to relize high rigidity and precision;



Storage





Company Profile



FAQ





Certificate

Advantages

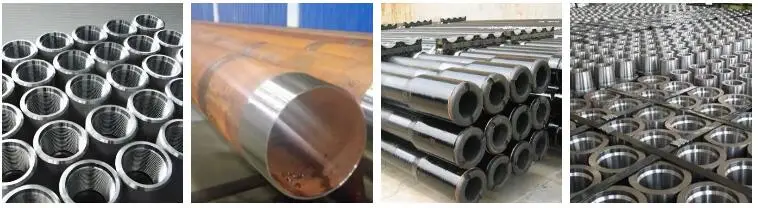

Application:

The application fields of Pipe Thread Lathe machine are the Processing and repairs of drill pipe, drill collar, joint, kelly bar and sleeve of Oil sector, Metallurgic Industry, Geological Prospecting, Chemical Industry & Hydropower.

Advantage:

We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.

The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better.

The 3 boxes of lathe were processed by Taiwan’s CNC boring and milling machine center. The other tools are processed by CNC lathe and machine center to ensure the precision of the box and tools.

First step of the accuracy test of the equipment is testing the repeat accuracy of X and Y axis with Renishaw laser interometer imported from Britain. After that, inspecting and accepting the whole equipment based on the enterprise standards, guarantee the accuracy of the machine tool.



SANZHENG Pipe threading lathe is professional pipe threading lathe machine manufacturers and suppliers in China, providing bulk products for sale. Welcome to wholesale high quality pipe threading lathe machine at cheap price from our factory.
