Q1313 Semi-Automatic Metal Pipe Threading Lathe Machine Price For Oil Industry With Machine Tool Manufacturer

FOB Reference Price:Get Latest Price
$2,500.00 - $6,333.00 / Set | 1 Set/Sets (Min. Order)
Max. Swing Diameter (mm):
630mm
Spindle bore:
130
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Range of Spindle Speed(r.p.m):
40 - 1400
Machining Capacity:
Heavy Duty
Width of bed (mm):
490
Max. Turned Length (mm):
2800 mm
Type:
Horizontal
Spindle Motor Power(kW):
11
Year:
2018
Place of Origin:
Shandong, China
Brand Name:
Sanzheng
Model Number:
Q1313
Voltage:
380V 3 phase / 50 Hz
Dimension(L*W*H):
Workpiece Size
Certification:
CE&ISQ
Weight (KG):
3000 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Key Selling Points:
High-accuracy
Applicable Industries:
Manufacturing Plant, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United Kingdom, France, Germany, Russia, Australia, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria
Showroom Location:
Egypt, Canada, United Kingdom, France, Germany, Saudi Arabia, Russia, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
CNC or Not:
Normal
Automatic Grade:
Semi-automatic
Max. workpiece length:
1500/3000/4000/5000mm
Name:
Metal Pipe Threading Lathe Machine Price For Oil Industry
Weight:
3000kg
Max. Swing Diameter:
630mm
Power(W):
7.5/11KW
Product Name:
Pipe Threading Lathe
Max. Swing Diameter (mm):
630 mm
Spindle Bore(mm):
130 m'm
Max. Length of Workpiece (mm):
3000 mm
Supply Ability
Supply Ability:
20 Set/Sets per Month Metal Pipe Threading Lathe Machine
Packaging & Delivery
Packaging Details
wooden case
Metal Pipe Threading Lathe Machine Price For Oil Industry With Machine Tool Manufacturer
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description

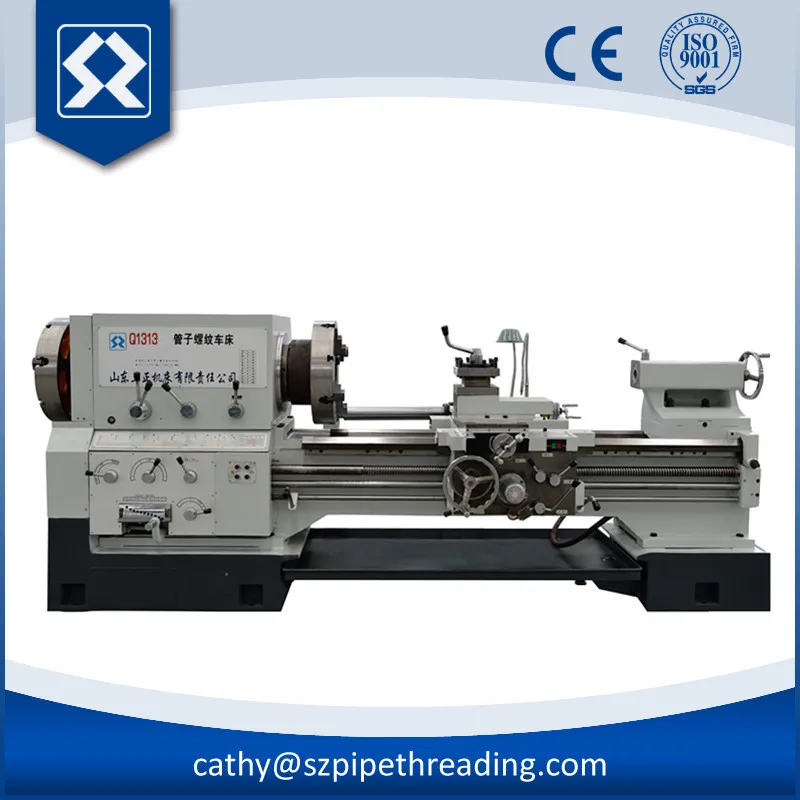

Q1313  Semi-Automatic Metal Pipe Threading Lathe Machine

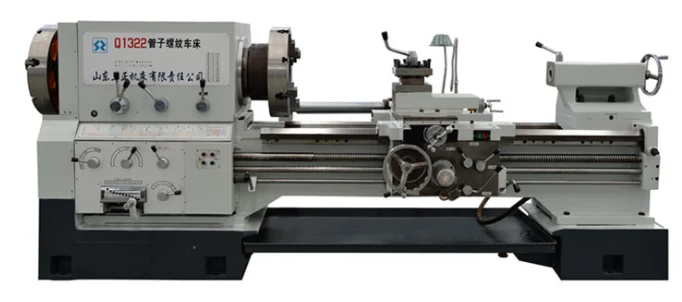

Photos of Mahine
Q13 series pipe thread lathe is specially developed by our company for the processing of AP pipe threads in the oilfield industry.The machine tool has a large spindle through-hole and a double chuck clamping structure on the front and back.It is suitable for all kinds of long pipe cylindrical threads, tapered threads and Turning of special threads.At the same time, it also has all the functions of ordinary CNC lathes. It can replace ordinary CNC lathes to process complex shaped shafts, sleeves, disks and other parts, such as turning inner and outer cylindrical surfaces, conical surfaces, arc surfaces, end faces , Grooving, chamfering, threading, etc., strong process adaptability, high processing efficiency, uniform product. This machine tool has a novel appearance, simple operation, mature structure and stable performance, and is widely used in petroleum, natural gas, chemical, hydropower, and geological exploration departments.
Structural features of pipe thread lathe:
1. The bed is made of high standard cast iron (HT300) secondary molding and casting. After secondary aging treatment, it has strong stability, good rigidity and strong seismic resistance.
2. The guide rail surface is subjected to high-frequency quenching (Rockwell hardness can reach HRC55 or higher). The imported guide rail grinder is used for precision grinding to ensure long life, high accuracy and good retention of the guide rail surface.
3.3 The headstock box of the 3 spindle is completed by one-time molding of the imported horizontal boring and milling machining center. The spindle has high concentricity, strong structural rigidity, and can adapt to heavy cutting. Stable, both recutting and finishing.
4. Automatic forced circulation lubrication makes the transmission system run flexibly and can effectively cool down. Each sliding rail pair is coated with TSF soft belt, which greatly reduces the friction coefficient and improves the service life of the rail.
5. Equipped with a four-station electric tool post as standard, quick and easy tool change.
Main Parameters



Model and parameters

Q1313

Q1319

Q1322

Q1327

Guide-way Width (mm)

490

490

490

750

Max Swing Dia. over Bed(mm)

630

630

630

1000

Max. Swing over Carriage(mm)

350

350

350

610

Max. Processing Pipe Diameter

126

196

220

260

Max. Length (mm)

1500/3000

1500/3000

1500/3000

1500/3000

Spindle Bore (mm)

130

200

225

270

Number of Spindle Speed Changes

18 steps

12 steps

12 steps

12 steps

Range of Spindle Speed Changes

12~640

24~460

24~460

16~380

Range &Number of whit-worth Thread

28~2/40

28~2/40

28~2/40

4~12/6

Range &Number of Metric thread

1~14/24

1~14/24

1~14/24

2~8/4

Motor Power (kw)

11

11

11

18.5

Rapid Traverse Speed(m/min)

6

6

6

6

Max. Processing Length of Taper Ruler

500

500

500

1000

Accuracy

IT7

IT7

IT7

IT7

Roughness

Ra1.6

Ra1.6

Ra1.6

 Ra1.6





Storage



Checkout Equipment



Advantages

Application:

The application fields of Pipe Thread Lathe machine are the Processing and repairs of drill pipe, drill collar, joint, kelly bar and sleeve of Oil sector, Metallurgic Industry, Geological Prospecting, Chemical Industry & Hydropower.

Advantage:

We use electric furnace smelting, resin sand molding casting technology,avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.

The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better.

The 3 boxes of lathe were processed by Taiwan’s CNC boring and milling machine center. The other tools are processed by CNC lathe and machine center to ensure the precision of the box and tools.

First step of the accuracy test of the equipment is testing the repeat accuracy of X and Y axis with Renishaw laser interometer imported from Britain. After that, inspecting and accepting the whole equipment based on the enterprise standards, guarantee the accuracy of the machine tool.
